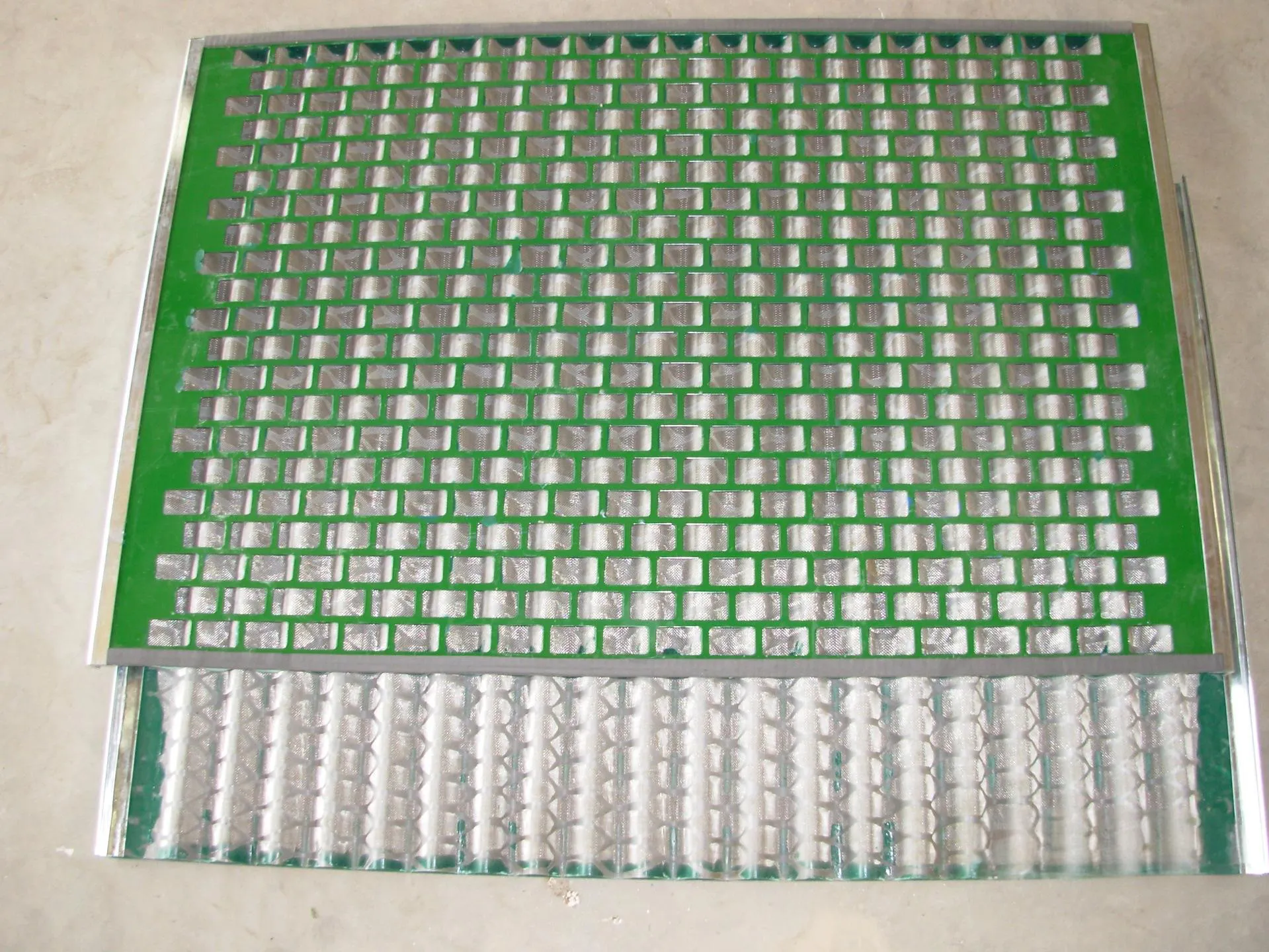

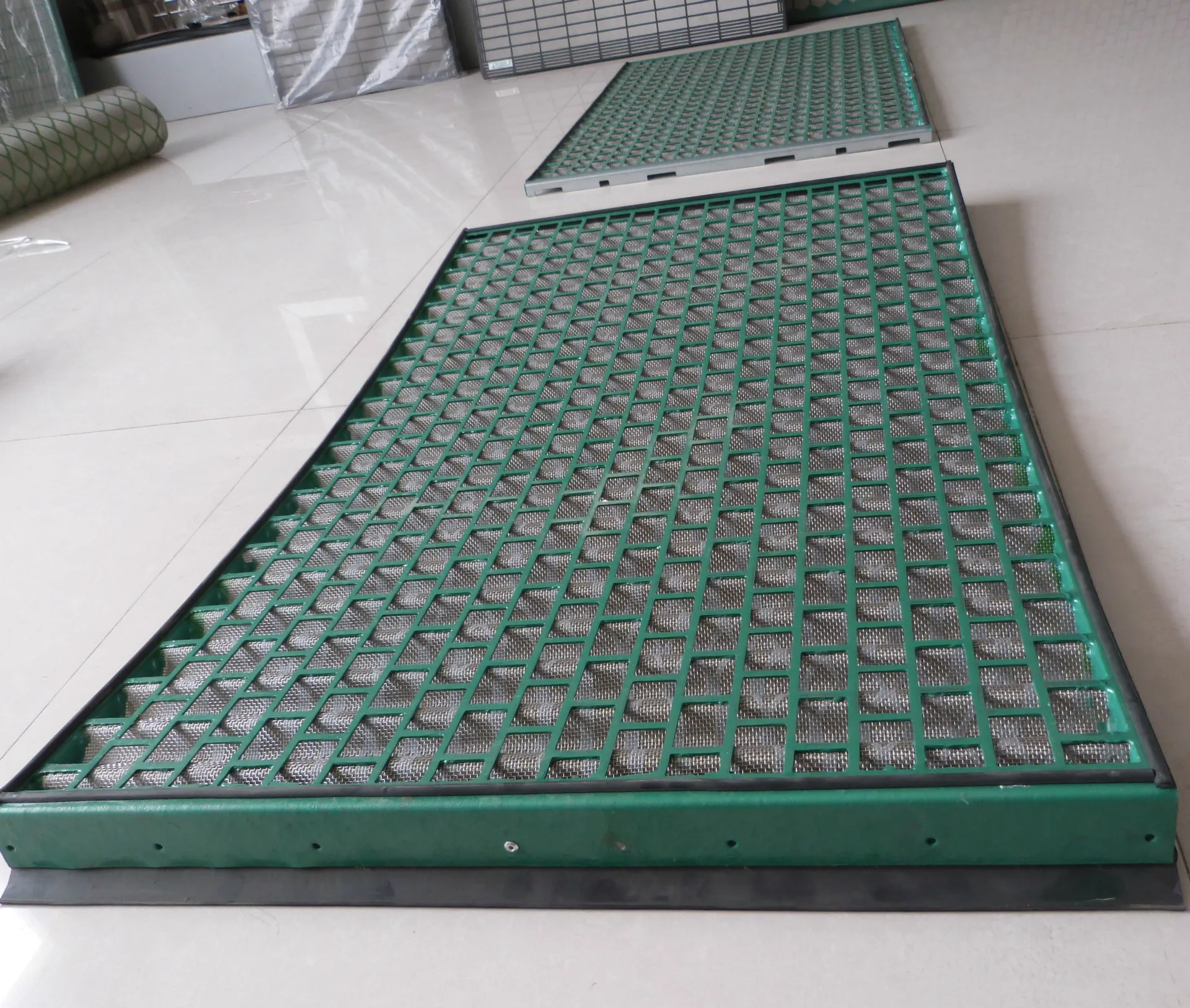

Hook Strip Flat Screen
Share to
- Product Features
-
Hook Strip Flat Screen is currently the most commonly used vibrating screen, which can be widely applied in drilling operations under different conditions.
Usually, a flat vibrating screen is composed of 2 to 3 layers of stainless steel mesh bonded to an open metal liner plate. The characteristics of this type of vibrating screen are as follows:
1. The mesh size of each layer of stainless steel screen in Hook Strip Flat Screen is different. Accurate and reasonable matching can make the screening effect more detailed. With different mesh sizes of stainless steel screens and punching shapes and hole rates of metal lining plates, we strive to obtain the maximum effective filtering area while ensuring the strength of use.
2. The stainless steel screen mesh is tightly bonded to the metal lining plate, enhancing the strength of the entire flat vibrating screen mesh and extending its service life.
3. The mesh of the metal lining plate divides the stainless steel mesh into multiple independent small mesh surfaces, which can prevent excessive expansion of local damage. At the same time, it is equipped with a dedicated rubber race to repair damaged mesh surfaces, which can save time and reduce usage costs. Our company has rich production experience and mature technology, and can produce various specifications of flat vibrating mesh screens according to the needs of different customers.
Screen ModelRange of MeshDimensionReplacement Screen Type(width x Length)HSP-120-325697×1053mmD2000HSP-220-325695×1050mmD500HSP-320-325697× 846 mmD313HSP-420-325903×1155mmBEM-3HSP-520-3251212×1141mmALS-2HSP-620-325915×1150mmLCM-2DHSP-720-325700×1165mmS250API Sieve Parameters
API RP 13C(ISO 13501)D100 Separation(Microns)API Screen Number>780.0 to 925.0API 20>655.0 to 780.0API 25>550.0 to 655.0API 30>462.5 to 550.0API 35>390.0 to 462.5API 40>327.5 to 390.0API 45>275.0 to 327.5API 50>231.0 to 275.0API 60>196.0 to 231.0API 70>165.0 to 196.0API 80>137.5 to 165.0API 100>116.5 to 137.5API 120> 98.0 to 116.5API 140> 82.5 to 98.0API 170> 69.0 to 82.5API 200> 58.0 to 69.0API 230> 49.0 to 58.0API 270
