Steel Frame Screen
Share to
- Product Features
-

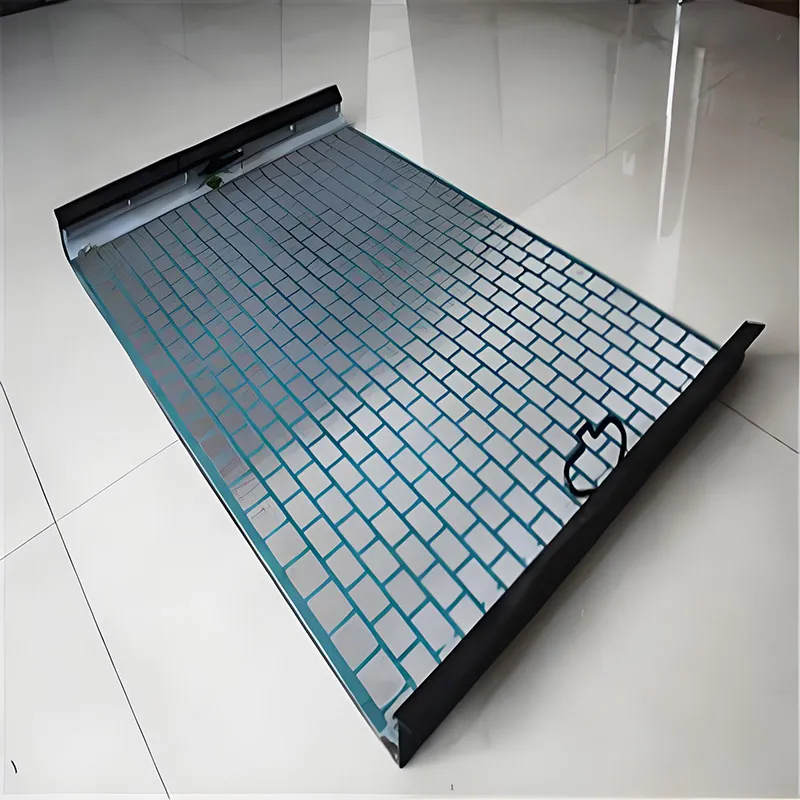

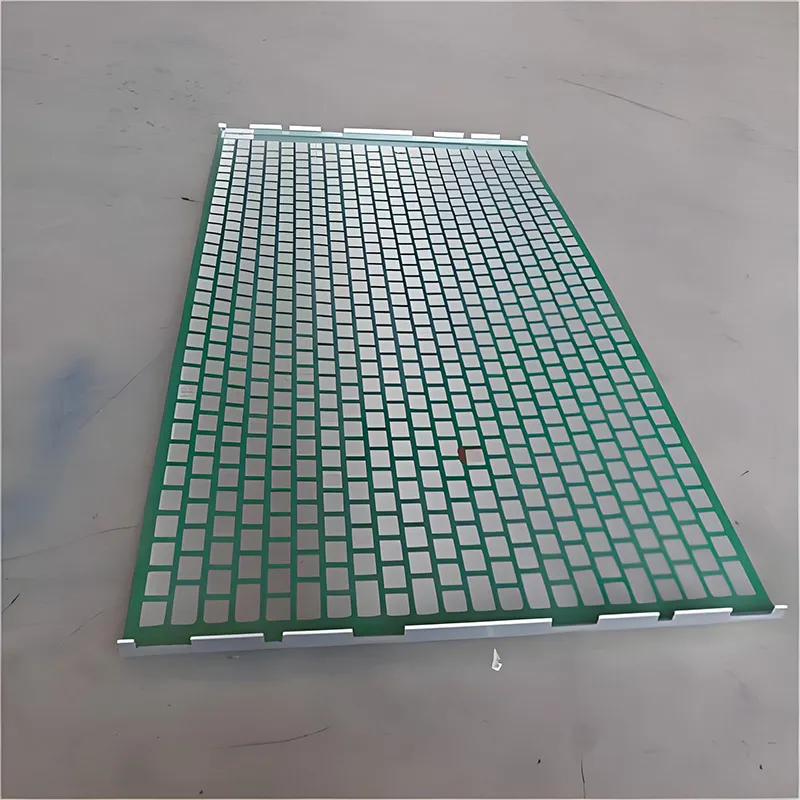

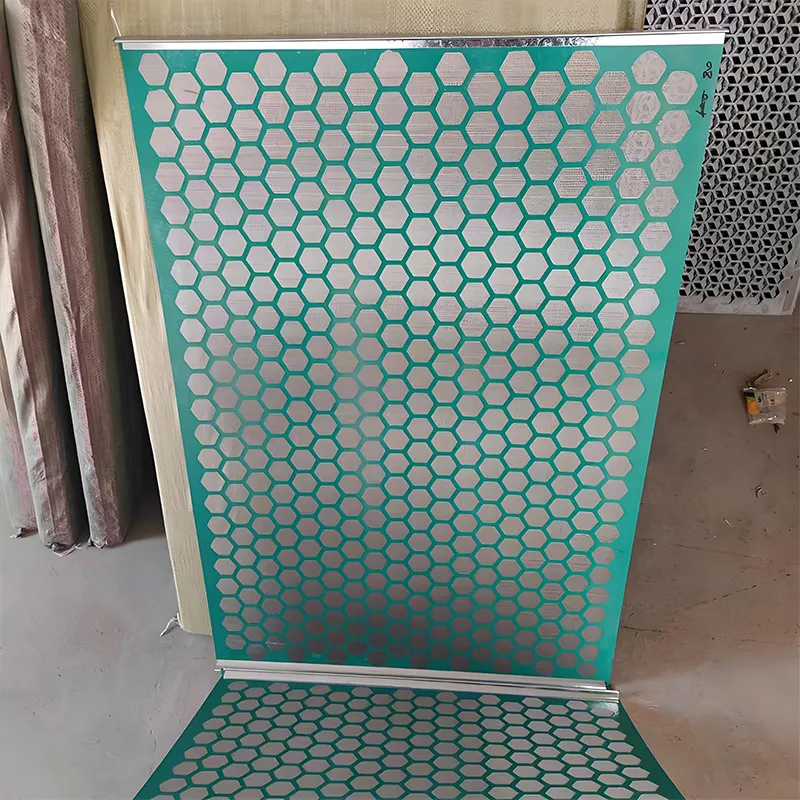

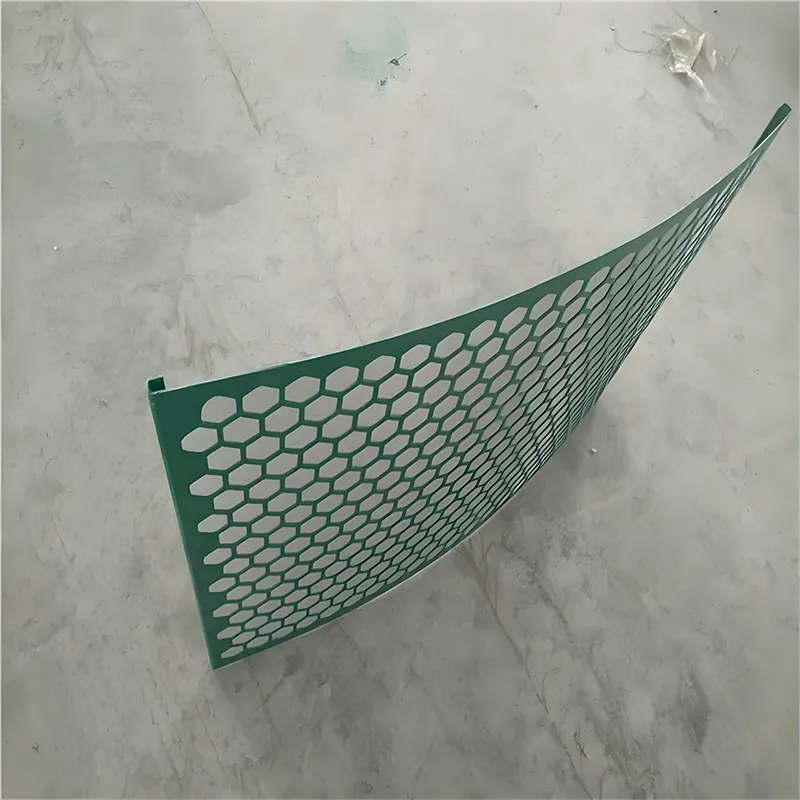

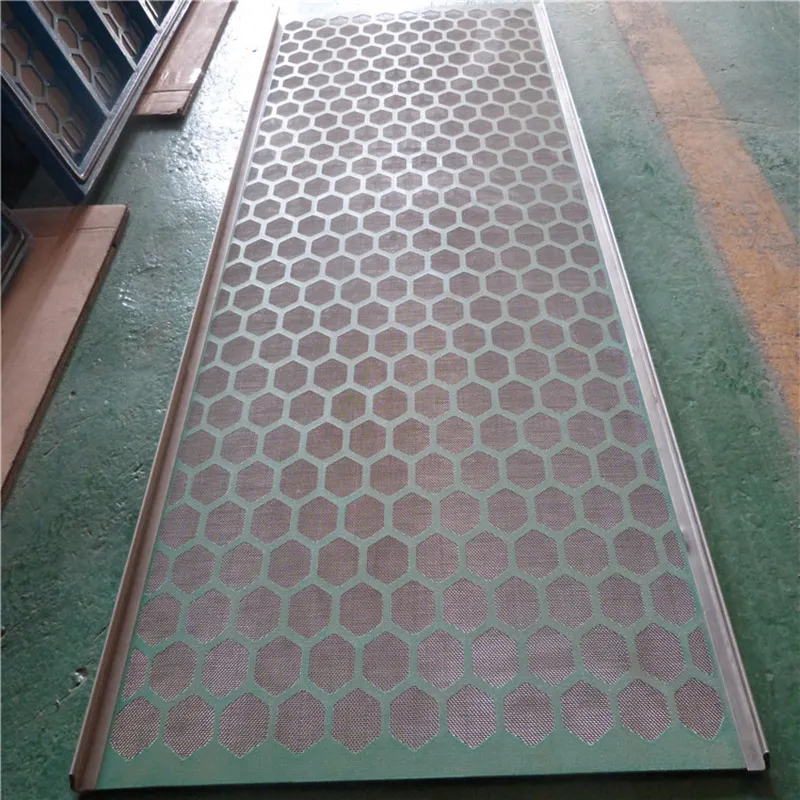

Steel Frame Screen is designed with two or three layers of 304 or 316 stainless steel wire cloth, and is equipped with a steel backplate and frame for optimal durability and filtration efficiency. Different grid and hole sizes help achieve excellent filtering performance.
Enhanced strength is achieved through a sturdy steel frame at the bottom, which is reinforced with support rods and tensioned screen cloth. This combination significantly improves the integrity and service life of the sieve, ensuring effective filtration of mesh sizes ranging from 20 to 325.
In order to reduce damage, the screen mesh is divided into independent parts to prevent excessive expansion and local wear. Special rubber plugs are easy to maintain, minimizing downtime and replacement costs while maximizing efficiency.
Advantage：
1.Corrosion resistant, heat-resistant, and wear-resistant.
2.Long service life and high traffic.
3.Easy disassembly, good temperature rating, and excellent performance.
4.Conductive (powdery) liquid with good slag capture effect.
Application：
1.Oil and gas drilling - Solid control system
2.Mud recovery system
3.Mining and Industry - Mud Separation Plan
Note:Screens in this list all are manufactured by our company.Screen size is generally provided by customers.Specific dimensions and details may be adjusted according to the order.
Screen ModelRange of MeshDimensionReplacement Screen Type(width x Length)HSK-120-325585×1165mmMON PT＆PROHSK-220-325635×1250mmCOBRA＆KING COBRAHSK-320-325913×650mmVSM300HSK-420-325720×1220mmKTL48 SERIESHSK-520-325712×1180mmD380HSK-620-325737*1067mmFSI 50＆500＆5000API Sieve Parameters
API RP 13C(ISO 13501)D100 Screening Particles (micrometers)API Sieve No.>780.0 to 925.0API 20>655.0 to 780.0API 25>550.0 to 655.0API 30>462.5 to 550.0API 35>390.0 to 462.5API 40>327.5 to 390.0API 45>275.0 to 327.5API 50>231.0 to 275.0API 60>196.0 to 231.0API 70>165.0 to 196.0API 80>137.5 to 165.0API 100>116.5 to 137.5API 120> 98.0 to 116.5API 140> 82.5 to 98.0API 170> 69.0 to 82.5API 200> 58.0 to 69.0API 230> 49.0 to 58.0API 270> 41.5 to 49.0API 325
