Wave® Screen
Share to
- Product Features
-

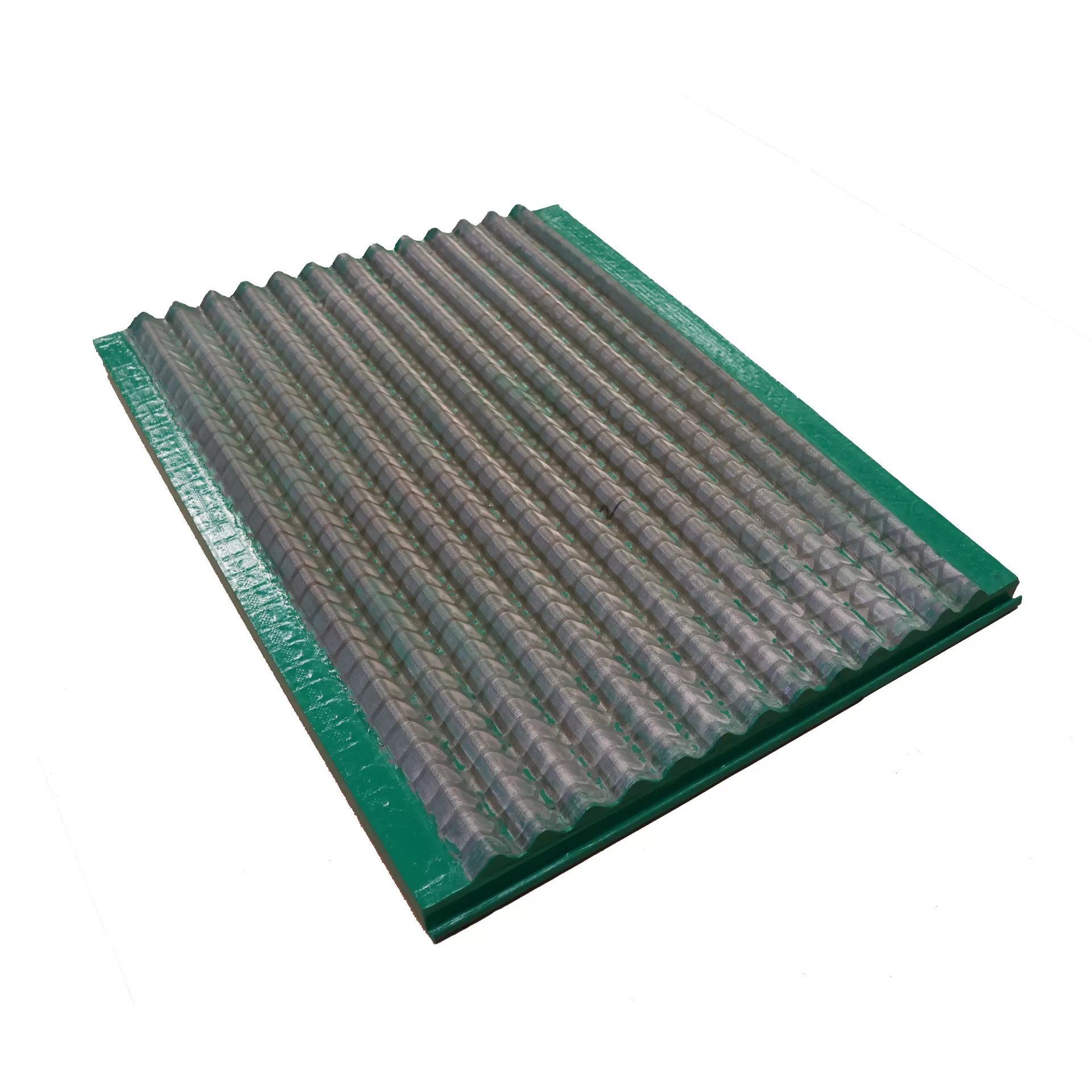

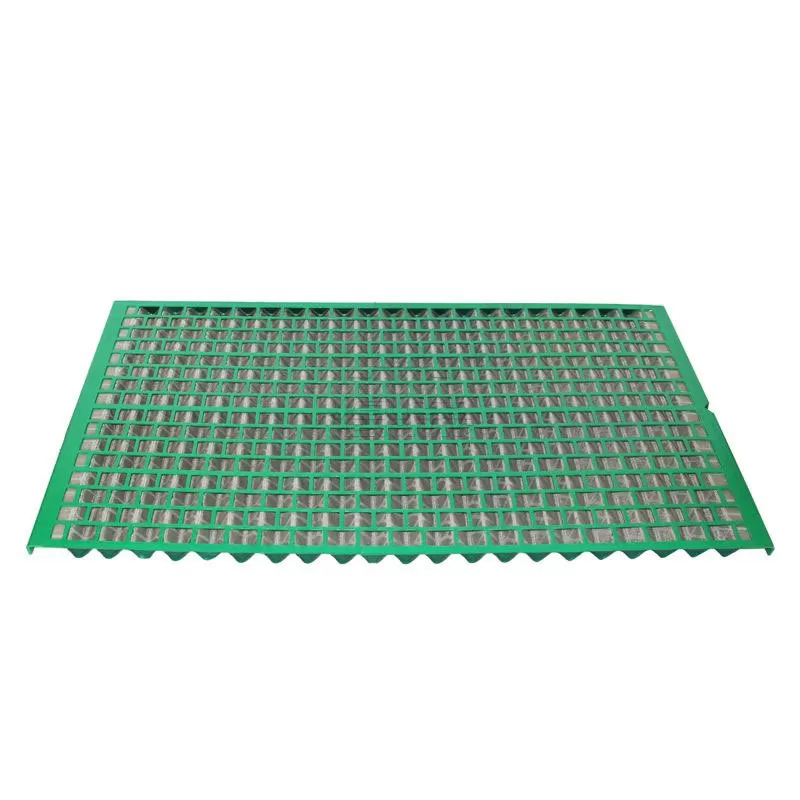

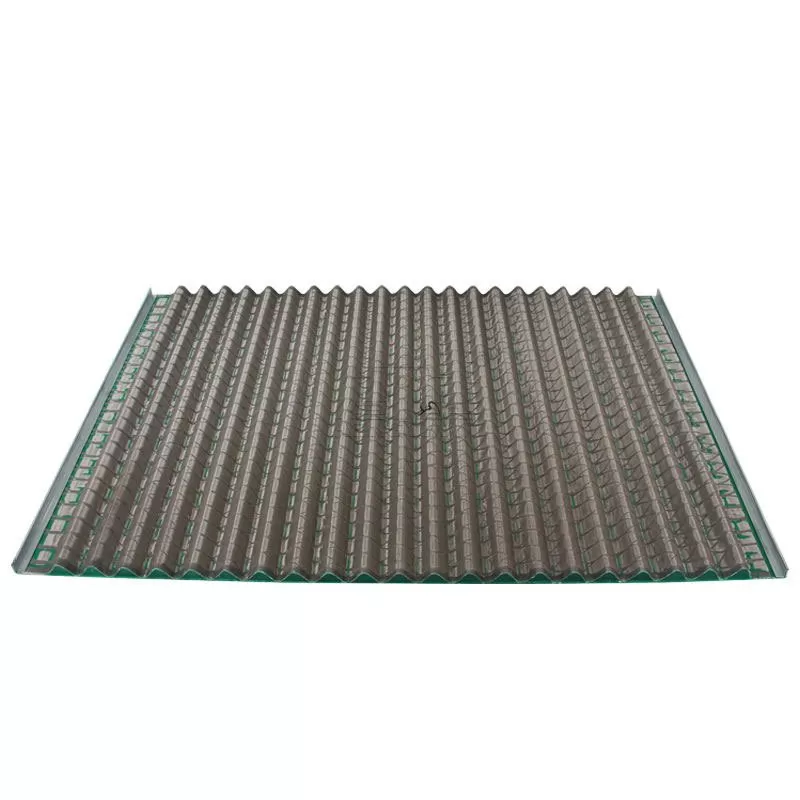

Wave ® Screen is named after its unique ripple form. The main features are as follows:
These product sieve plates are composed of two or three layers of 304 or 316 stainless steel wire cloth, which are combined and bent together with steel backboards. The silk cloth is tightly combined with the bottom steel backboard, increasing the filtering area by 120% to 150% compared to the hook bar flat screen, resulting in better performance.
Different layers have different densities. Reasonably and accurately arranging these layers will improve the screening effect. Screens with different mesh sizes and suitable back plate opening sizes. In this way, our product will achieve maximum effective area under sufficient strength conditions.
The lower layer has thick lines that can be tightly bonded to the backing to form a block. Therefore, the strength of the entire sieve increases and its service life increases.
Advantage:
1. Increase the capacity of the vibrating screen.
2. Perform precise separation.
3. Suitable for existing rocking beds.
4. The screen is finer and faster.
5. drier inserts.
Our company is able to produce various specifications of wave vibrating screens according to the needs of different customers.
Screen ModelRange of MeshDimensionReplacement Screen Type(widthx Length)HSB-1(WAVE)20-325697×1053mmD2000HSB-2(WAVE)20-325695×1050mmD500HSB-3(WAVE)20-325710×626mmD600HSB-4(WAVE)20-325567×1070mmD-HYPAPI Sieve Parameters
API RP 13C(ISO 13501)D100 Screening particle size (micrometer)API Screen No.>780.0 to 925.0API 20>655.0 to 780.0API 25>550.0 to 655.0API 30>462.5 to 550.0API 35>390.0 to 462.5API 40>327.5 to 390.0API 45>275.0 to 327.5API 50>231.0 to 275.0API 60>196.0 to 231.0API 70>165.0 to 196.0API 80>137.5 to 165.0API 100>116.5 to 137.5API 120> 98.0 to 116.5API 140> 82.5 to 98.0API 170> 69.0 to 82.5API 200> 58.0 to 69.0API 230> 49.0 to 58.0API 270> 41.5 to 49.0API 325
